list processing
Galaga II
Part A: Problems 1-4 and 7,8 due
Oct.11 (Fri) 23:59
on D2L (no hardcopy).
Part B: The remainder due
Oct.14 (Mon)
at start of class; submit all problems (incl. part A)
on D2L, and hardcopy.
Reading: §6.6, and §10.1–10.3.1.
(Additional recommended, but not required, background reading: all of Chpt.6, and §10.3.
Additional, non-required, challenge-reading: § 10.5.)
All problems are to be written in Racket.
Do not call any of the following functions:
- list (except when making test-cases)
- append (unless you write it yourself)
- remove/remove* (unless you write it yourself)
- place-images (plural) (unless you write it yourself); calling place-image (singular) is fine/intended.
- any functions with a “!”, such as set! and set-rest!.
Your name and the assignment-number
must be in a comment at the start of the file
All functions/data must include the appropriate steps of the design recipe.
In particular, test cases alone might be worth 40-50% of the credit for a function.
Have enough test cases to cover different corner cases; often 2–3 can suffice.
- (5pts)
Write the function count-bigs : real, list-of-real → natnum,
which takes in a threshold and a list of numbers, and returns
how many of them
are larger than the threshold.

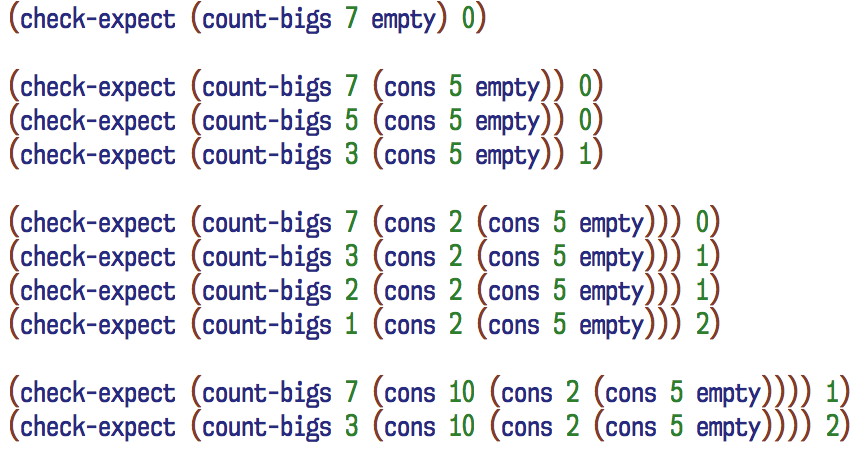

To help you out, here are some test cases; no further ones are required.
(The data-definition for list-of-number has already been given in lecture,
so you don't need to repeat steps 1-3 of the design recipe for list-of-number.)
Remember: We can't re-assign to variables, in functional programming.
So we won't have a counter which we increment, like you might in your imperative-programming class.
Instead, be sure to follow the design recipe, and after copying the template,
think about the inventory-with-values
(assuming we call our parameters “threshold” and “nums”):
if we call count-bigs with the particular inputs
(count-bigs 3 (cons 10 (cons 2 (cons 5 empty)))), what is…
- threshold =
- nums =
- (first nums) =
- (rest nums) =
- (count-bigs threshold (rest nums)) =
Fill in each blank with a particular number, or list-of-numbers.
Then, ask yourself: Starting with those pieces of info,
how do I assemble them to get my desired result of 2?
You don't need to include the above in your answer —
it's just to remind you of what you do,
for the “inventory-with-values” step of the design-recipe, #6.
If you get stuck on any of the problems below, make sure you didn't skip this step;
it's the one that can really make things click!
- (5pts)
Write the racket function map-sqr : list-of-number → list-of-number,
which squares each number in a list;
do not call map .
To help you out, here are some test cases; no further ones are required.
(check-expect (map-sqr empty) empty)
(check-expect (map-sqr (cons 7 empty)) (cons 49 empty))
(check-expect (map-sqr (cons 9 (cons 7 empty))) (cons 81 (cons 49 empty))) |
Copy your hw04(structs) racket file to one that we'll use for this one.
Add a very noticeable dividing-line (say, 80 ;s)
between old code and the new.
You will not need to turn in hardcopy of things before the dividing-line
if they were in your hw04 solution or in the posted hw04-soln.
Please include part A (problems 1,2) in your part B hardcopy.
- (5pts)
List-of-aliens:
- Give the data-definition for list-of-alien
but no define-structs are necessary, since using the built-in cons suffices.
- Give at least 4 example values of this type.
Your last example should contain at least six aliens; you may use this as the aliens
in your game's initial world.
- Write the template for a list-of-alien processing function.
- (5pts)
Write draw-aliens : list-of-alien, image → image,
similar to the draw-* functions from hw04.html.
hint: When creating the expected-output for your test cases, feel free to call draw-alien.
- (10pts)
Write
move-alien : alien → alien,
and then use that as a helper for
move-aliens : list-of-alien → list-of-alien.
- (5pts)
Write draw-missiles and move-missiles, similarly.
- Worlds:
(2pts)
Define a “world” structure which contains
one ship, a list of missiles, list of aliens,
and a “fleet direction” (whether the aliens are currently marching to the right, or to the left).
As usual for our data-definitions,
make examples of the data (at least two).
- Give a template for world-processing functions.
- (3pts)
Write the function update-world : world → world
which returns a new world one “tick” later.
For the moment, update-world can ignore collisions with missiles,
and it can leave the fleet-direction unchanged.
We’ll fix those below.
- (2pts)
Write the function world-handle-key : world, keypress → world
which returns a new world updated to handle the keypress.
(Should be easy -- mostly defers to ship-handle-key,
and your test cases will largely crib from that.
Firing, however, will be part of this function.)
- (3pts)
Write the function draw-world : world -> image,
which draws the world onto a blank background.
hint: Call
draw-ship
with an empty-scene for the background;
call draw-missile passing it the result of draw-ship
as the second argument.
In turn, use that result as the 2nd arg to draw-aliens.
Collisions
We'll count a collision as overlapping bounding boxes.
Here is a provided with overlap.rkt, which determines if two rectangles overlap
(given their centers and sizes).
- (5pts)
Write alien-collide-missile?, which determines whether a single alien overlaps with a single missile.
Have two test cases (this is reasonably sufficient, given that you already have a fully-tested overlap?).
- (5pts)
Write aliens-remaining : list-of-alien, missile → list-of-alien
which returns all aliens in the given list which are not colliding with the given missile.
hint: We previously saw, when
counting certain items in a list —
where we either added 1 or left our value unchanged, depending —
that we could cleverly view "unchanged" as "add 0", and then once we had "add-1-or-0, depending" we could refactor.
However, cons is not quite like that:
there is no way to call cons without adding something onto another list.
So we can't use that same trick.
- (5pts)
Write aliens-remaining*,
which is similar to aliens-remaining except that is takes in a list of missiles
and returns the all the aliens that are not hit by any of them.
It should, of course, call aliens-remaining as a helper.
Note: This function is kinda a “nested loop”,
but we avoid that by processing a single-list,
and for each element calling a helper function that acts as an “inner-loop”.
- (5pts)
Write
missiles-remaining
and
missiles-remaining*,
which account for what bullets are left after a collision.
Note: If you leave this 'til last, it’s okay;
if your overall update-world has missiles continue after removing an alien,
the game is still playable.
- (5pts) Write a function so that you can tell if the game is over
(that is, if the ship is hit by a missile).
Use helper functions as appropriate.
- (5pts)
Modify your update-world so that its
the aliens and missiles in the updated version account for collisions.
(No further test cases required, beyond what you had for those functions,
though myself, I chose to include one more test case for each of these functions.)
- (10pts)
Modify your update-world so that the alien fleet changes
whenever the rightmost- or leftmost-alien doesn't overlap with the screen.
Use helper functions appropriately.
Alternately (for just a couple points, but easier) you can just have the
fleet change direction at hard-coded locations.
- (0pts / optional)
Make the aliens fire missiles, occasionally.
All the above should have their tests, as well
as signatures and (brief) purpose statements.
Only after all tests pass,
add
(require 2htdp/universe)
(big-bang some-initial-world
[on-key world-handle-key]
[on-tick update-world]
[to-draw draw-world]
) |
and you can play your game.
You might even add a stop-when clause to big-bang
(providing a function that takes in a world, and returns a boolean).
