list processing
maRiU cont.

Due Oct.18 (Tue)

For this homework:

• You may use any/all of hw04-soln and student-extras v2.04. (You certainly don't need to, though.)
• You may not call place-images (plural), though you may(should) call place-image.
• You may not call append.
• You may not call list, except perhaps to make test-case inputs/results. Inside your functions, you almost certainly want to use cons instead of list.

Reading: §6.6, and §10.1–10.3.1.
(Additional recommended, but not required, background reading: all of Chpt.6, and §10.3. Additional, non-required, challenge-reading: § 10.5.)

All problems are to be written in Racket. Do not call any of the following functions:

• list (except when making test-cases)
• append (unless you write it yourself)
• remove/remove* (unless you write it yourself)
• place-images (plural) (unless you write it yourself); calling place-image (singular) is fine/intended.
• any functions with a “!”, such as set! and set-rest!.

Your name and the assignment-number must be in a comment at the start of the file All functions/data must include the appropriate steps¹ of the-design-recipe.html. In particular, test cases alone might be worth 40-50% of the credit for a function. Have enough test cases to cover different corner cases; often 2–3 can suffice.

part a

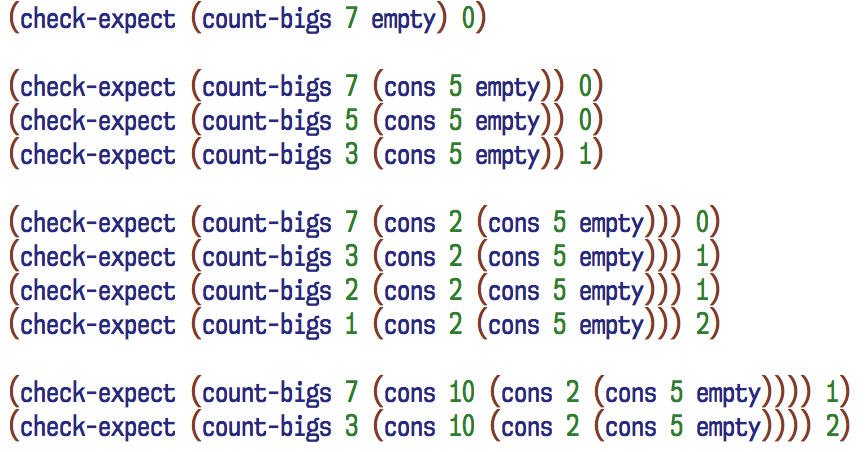

1. Write the function count-bigs : (-> real? (list-of real?) natural?), which takes in a threshold and a list of numbers, and returns how many of them are larger than the threshold. To help you out, here are some test cases; no further ones are required. (The data-definition for list-of-number has already been given in lecture, so you don't need to repeat steps 1-3 of the design recipe for list-of-number.)


   Remember: We can't re-assign to variables, in functional programming. So we won't have a counter which we increment, like you might in your imperative-programming class. Instead, be sure to follow the design recipe, and after copying the template, think about the inventory-with-values (assuming we call our parameters “threshold” and “nums”): if we call count-bigs with the particular inputs (count-bigs 3 (cons 10 (cons 2 (cons 5 empty)))), what is…

   • threshold =
   • nums =
   • (first nums) =
   • (rest nums) =
   • (count-bigs threshold (rest nums)) =

   Fill in each blank with a particular number, or list-of-numbers. Then, ask yourself: Starting with those pieces of info, how do I assemble them to get my desired result of 2?

   You don't need to include the above in your answer — it's just to remind you of what you do, for the “inventory-with-values” step of the design-recipe, #6. If you get stuck on any of the problems below, make sure you didn't skip this step; it's the one that can really make things click!

2. Write the racket function map-sqr : list-of-number → list-of-number, which squares each number in a list; do not call map . To help you out, here are some test cases; no further ones are required.

   (check-expect (map-sqr empty) empty) (check-expect (map-sqr (cons 7 empty)) (cons 49 empty)) (check-expect (map-sqr (cons 9 (cons 7 empty))) (cons 81 (cons 49 empty)))

Copy your hw04(structs) racket file to one that we'll use for this one. Add a very noticeable dividing-line (say, 80 ;s) between old code and the new. You will not need to turn in hardcopy of things before the dividing-line if they were in your hw04 solution or in the posted hw04-soln and student-extras v2.04. Your hw05 may use any/all of the hw04-soln and student-extras v2.04; of course, cite any code you use like this (including a URL), just as would do for any purpose, hw or not.

3. For List-of-turtles,
   1. Give the datatype-definition for list-of-turtle but no define-structs are necessary, since using the built-in cons suffices.
   2. Give at least 4 example values of this type. Your last example should contain at least four turtles; you may use this as the turtles in your game's initial world.
   3. Write the template for a list-of-turtle processing function.
4. Updating lists-of-objects.
   1. Write move-turtles : list-of-turtle → list-of-turtle , which returns a list where each turtle has moved.

      Note: Your test cases can call our already-tested move-turtle, which in turn suggests your code should! call it as well.

      Note: The code for this will follow directly from the template. Its return value happens to be a list; we have seen that both in lecture's tee (triple-every-even), and map-sqr above. …If you have a list and a single item, what function can you call that will tack that one item onto the front of the list?

   2. Write player-collide-turtles? : (-> player (listof turtle) boolean?, which determines whether a player overlaps with any turtle in a list-of-turtle (which will help us determine whether a player should lose a life). Of course, you'll call last homework's turtle-collide-player? as a helper.

   3. Write turtles-not-overlapping-player : (-> player (listof turtle) (listof turtle), which takes in a list of turtles and a player, and returns only those enemys that don't overlap the player. (It will of course call turtle-collideoverlap-player?.) This lets us only keep the turtles that weren't killed.
   4. Write function draw-turtles, which takes a list-of-items and a background-image, and return the background image with the items overlaid on it. When creating the expected-output for your test cases, feel free to include the calls to draw-turtle (singular), etc. from the previous homework. Creating the expected-result for a test for a list-of-length-2 will help you understand what your code needs to do. And of course, you'll need a similar draw-platforms.
5. Write resolve-player+platforms : (-> player? (list-of platform?) player?)move-and-bounce-off-all, which updates a player based on all the platforms. I don't need to tell you: it should call a helper resolve-player+platformmove-and-bounce-off as in the hw04-soln and student-extras v2.04.
6. Similarly, we'll need to deal with turtles vs platforms. Two simple functions can do this, in addition to resolve-turtle+platform (already provided in hw04-soln and student-extras v2.04): resolve-turtle+platforms, and resolve-turtles+platforms.
   Note that rather than have a doubly-nested loop to consider each turtle and each platform, in this approach the inner-loop becomes its own helper-function, which we call from another (outer) loop. This allows us to have unit-tests for just the inner-loop; otherwise debugging the inner-loop would require starting a debugger and setting breakpoints.
7. Worlds:

   1. Define a world structure which contains: one player, list of platforms, Optional: one flag, and a list of turtles

      As usual for our data-definitions, make examples of the data (at least two).

   2. Give a template for world-processing functions.
   3. Write the function world-handle-key : world, key-event → world which returns a new world updated to handle the keypress. (Fairly easy — it mostly defers to player-handle-key, and your test cases will largely crib from that.
   4. Write the function update-world : world → world which returns a new world one “tick” later. This will include calls to your move-X functions. A single test-case might suffice for this, since your expected-result can(should) involve calls to functions that have already passed their tests.
   5. Write the function game-over? : world → boolean. This will be a thin wrapper over player-collides-turtles, and (optionally) player-collides-flag and checking if a player's lives-remaining is 0.
8. Write draw-world, which has a slightly different signature: world -> image. This is the function that will proide the very first background-image that gets passed to other draw-… functions.

All the above should have their tests, as well as signatures and (brief) purpose statements.

Only after all tests pass, add

(require 2htdp/universe)

(big-bang some-initial-world
          [on-key  world-handle-key]
          [on-tick update-world]
          [to-draw draw-world]
          [stop-when game-over?]
          )
