list processing
Pac-Man cont.

Part A: Problems 1–6 due Oct.03 (Thu) at start of class, on D2L (no hardcopy).
Part B: The remainder due Oct.08 (Tue) at start of class; submit all problems (incl. part A) on D2L, and hardcopy.

Reading: §6.6, and §10.1–10.3.1.
(Additional recommended, but not required, background reading: all of Chpt.6, and §10.3. Additional, non-required, challenge-reading: § 10.5.)

All problems are to be written in Racket. Do not call any of the following functions:

• list (except when making test-cases)
• append (unless you write it yourself)
• remove/remove* (unless you write it yourself)
• place-images (plural) (unless you write it yourself); calling place-image (singular) is fine/intended.
• any functions with a “!”, such as set! and set-rest!.

Your name and the assignment-number must be in a comment at the start of the file All functions/data must include the appropriate steps¹ of the-design-recipe.html. In particular, test cases alone might be worth 40-50% of the credit for a function. Have enough test cases to cover different corner cases; often 2–3 can suffice.

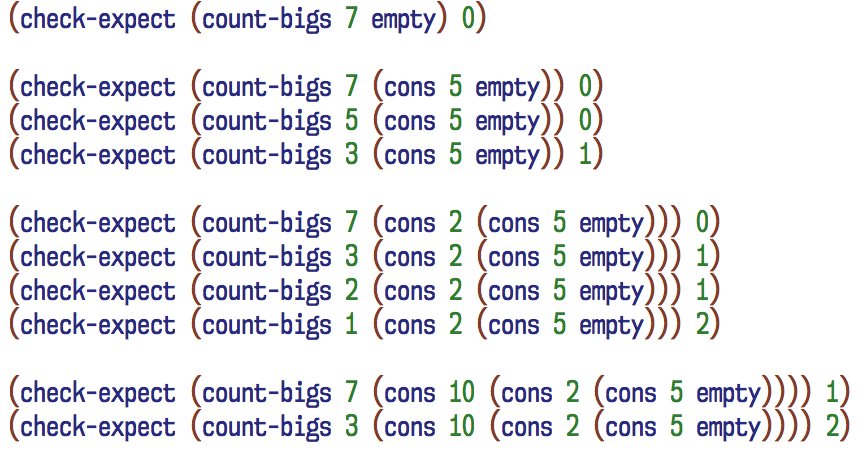

1. Write the function count-bigs : (-> real? (listof real?) natnum?, which takes in a threshold and a list of numbers, and returns how many of them are larger than the threshold. To help you out, here are some test cases; no further ones are required. (The data-definition for list-of-number has already been given in lecture, so you don't need to repeat steps 1-3 of the design recipe for list-of-number.)


   Remember: We can't re-assign to variables, in functional programming. So we won't have a counter which we increment, like you might in your imperative-programming class. Instead, be sure to follow the design recipe, and after copying the template, think about the inventory-with-values (assuming we call our parameters “thresh” and “nums”): if we call count-bigs with the particular inputs (count-bigs 3 (cons 10 (cons 2 (cons 5 empty)))), what is…

   • thresh =
   • nums =
   • (first nums) =
   • (rest nums) =
   • (count-bigs threshold (rest nums)) =

   Fill in each blank with a particular number, or list-of-numbers. Then, ask yourself: Starting with those pieces of info, how do I assemble them to get my desired result of 2?

   You don't need to include the above in your answer — it's just to remind you of what you do, for the “inventory-with-values” step of the design-recipe, #6. If you get stuck on any of the problems below, make sure you didn't skip this step; it's the one that can really make things click!

2. Write the racket function map-sqr : (-> (listof number?) (listof number?)), which squares each number in a list; do not call map . To help you out, here are some test cases; no further ones are required.

   (check-expect (map-sqr empty) empty) (check-expect (map-sqr (cons 7 empty)) (cons 49 empty)) (check-expect (map-sqr (cons 9 (cons 7 empty))) (cons 81 (cons 49 empty)))

You will not need to turn in hardcopy of things before the dividing-line if they were in your hw04 solution or in the posted hw04-soln². Please include part A (problems 1–6) in your part B hardcopy.

3. For List-of-ghosts,
   1. Give at least 4 example values of this type. Your last example should contain at least four ghosts; you may use this as the ghosts in your game's initial world.
   2. Write the template for a list-of-ghost processing function.
4. Write pacman-collide-ghosts?, which determines whether a single pacman overlaps with any ghost in a list-of-ghosts.
   (Of course, you should call hw04's pacman-collide-ghost? as a helper.)

   name-change: In hw04 we actually called it pacman-overlap-ghost?, but I decided I prefer collide. You can use either collide or overlap, as you prefer.

5. Write ghosts-remaining : (-> pacman? (listof ghost?) (listof ghost?)), which returns all ghosts in the given list which are not colliding with the pacman.
   (Since you are (presumably) not implementing a pacman being powered up, then you won't actually call this function in your final game, but I am still requiring it. If you are implementing that feature, then the function should only remove ghosts if the pacman is currently powered-up.) Remember, do not call built-in functions like remove. Use the list template.
6. Drawing: Write draw-ghosts, which takes a list-of-ghosts and a background-image, and returns the background image with the ghosts overlaid on it. When creating the expected-output for your test cases, feel free to include the calls to draw-ghost (singular), etc.. Creating the expected-result for a test for a list-of-length-2 will help you understand what your code needs to do.
7. Similarly, give examples of List-of-walls. You don't need to give a data-def'n or template (since they are so similar to those for List-of-ghosts), though. One list should be what you'll use in the game, and to be interesting should have at least six walls: Four for the outer-boundary, and at least two interior ones. That lets us do something at least as interesting as, say:
8. Similarly, write pacman-collide-walls? and ghost-collide-walls?.
9. Write draw-walls, similar to draw-ghosts.
10. Write move-ghost : (-> ghost? (listof wall?) ghost?), which is like glide-ghost but accounting for walls:
    If gliding one step would end up colliding with a wall, then instead just³ ghost-spin (from hw04). (In this case the ghost need not actually end up moving.⁴).
11. Similarly, write move-pacman : (-> pacman? (listof wall?) pacman?).
    • Option 1: If your pacman struct includes both a current-direction and a cached direction-keypress, then: You should test if moving in the direction of the cached direction will avoid walls; if so then that will become the new direction. Otherwise, see if moving in the current direction will avoid walls; if so it continues moving in that direction. Otherwise, the pacman should … stop? Move in a random/next direction? It's up to you.
    • Option 2: If your earlier pacman-handle-key had a keypress take effect immediately, you can still do so. (This is harder for the player, since there is only a limited time for them to hit the direction key — as little as one frame, if two walls are exactly the width of a pacman|!) In this case, if gliding the pacman would result in colliding with a wall, the pacman should probably stop (which is different from the original game).
12. Worlds:

    1. Define a “world” structure which contains one pacman, a list of ghosts, and a list of walls.

       As usual for our data-definitions, make examples of the data (at least two).

    2. Give a template for world-processing functions.
    3. Write the function move-world : (-> world? world?) which returns a new world one tick later, where the pacman and all ghosts have moved.
13. Write the function world-handle-key : (-> world? key-event? world?) which returns a new world updated to handle the keypress. Will be easy — mostly defers to pacman-handle-key, and your test cases will largely crib from that.
14. Write the function draw-world : (-> world? image?), which draws the world onto a blank background.
15. Optionally: If implementing dots, give functions similar to the above for them.
16. Finally, write a function game-over? : (-> world? boolean?), which returns whether the game is over (that is, if the pacman is colliding with a ghost, or (optionally) there are no more dots).

All the above should have their tests, as well as signatures and (brief) purpose statements.

Only after all tests pass, add

(require 2htdp/universe)

(big-bang some-initial-world
    [on-key  world-handle-key]
    [on-tick update-world]
    [to-draw draw-world]
    [stop-when game-over?])
